Low Carbon Steel Pipe Security Garrison Fence Panels Spear Top Steel Fence

Top Fence Co.Ltd
Contact Now

Low Carbon Steel Pipe Security Garrison Fence Panels Spear Top Steel Fence

Brand Name : top garrison fence

Model Number : 1800mm*2400mm /2100mm*2400mm/2400mm

Certification : ISO

Place of Origin : China

MOQ : 100 unit

Price : 55.00-99.11

Payment Terms : Western Union, MoneyGram, T/T, MoneyGram

Supply Ability : 1000 pcs per week

Delivery Time : 15 days

Packaging Details : metal pallet wrapped with plastic

Materials : Q235

Color : black ,blue ,white etc

Nick : Garrison ,Hercules ,Diplomat

Powder : 80 microns

Dimensions : 1800mm*2400mm

Contact Now

Spear Top Steel Fence / Security Fence / Garrison Fence 1800mm*2400mm 80 microns powder rail 40mm brozone wire weld
Material: low carbon steel pipe
Surface treatment: hot-dipped galvanized then powder coating
Product brief introduction:

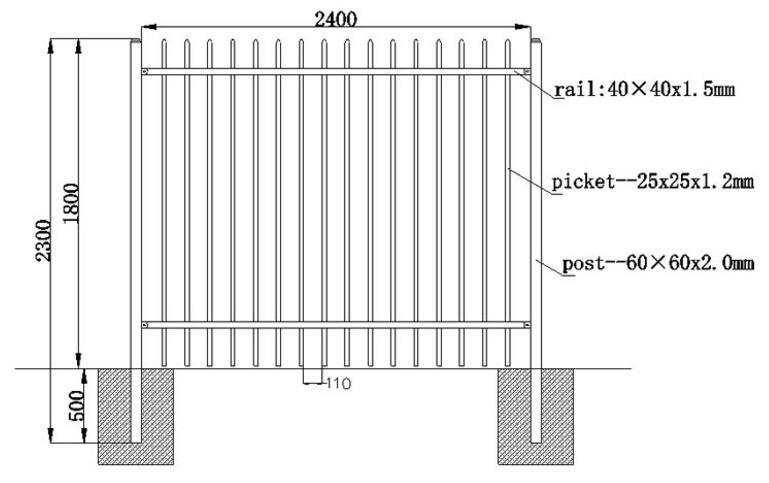

a. Heavy duty Crimp top security fence in Black and White colour
b. Width 2400mm x Height 1800mm
c. 40x40x1.5mm top rail, 25x25x1.2mm Verticals
d. Gap in between the pickets is 110mm
e. 60x60x2.0mm thick post - these are 3m long each not 2.6m long as others supply
Common specification:

Rail tube

Vertical tube

60 steel post

80 steel post

Height

45*45*1.5mm

25*25*1.2mm

60*60*2.0mm

80*80*2.0mm

1.2m/1.5m/1.8m/2.0m

40*40*1.5mm

19*19*1.2mm

60*60*1.8mm

80*80*1.8mm

1.2m/1.5m/1.8m/2.0m

32*32*1.2mm

16*16*1.0mm

50*50*1.5mm

80*80*1.5mm

1.2m/1.5m/1.8m/2.0m

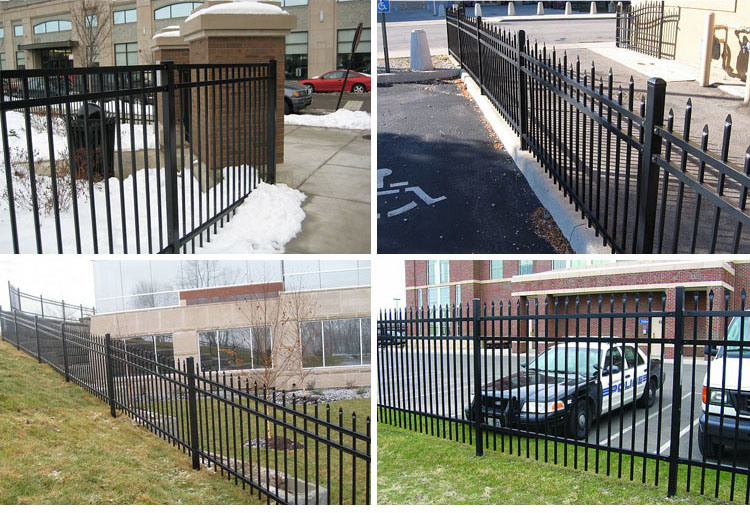

Steel Fence is ideal for:
Fencing where a medium level of security is important.
Commercial and Industrial security fencing applications
Schools, Power-stations, Government projects

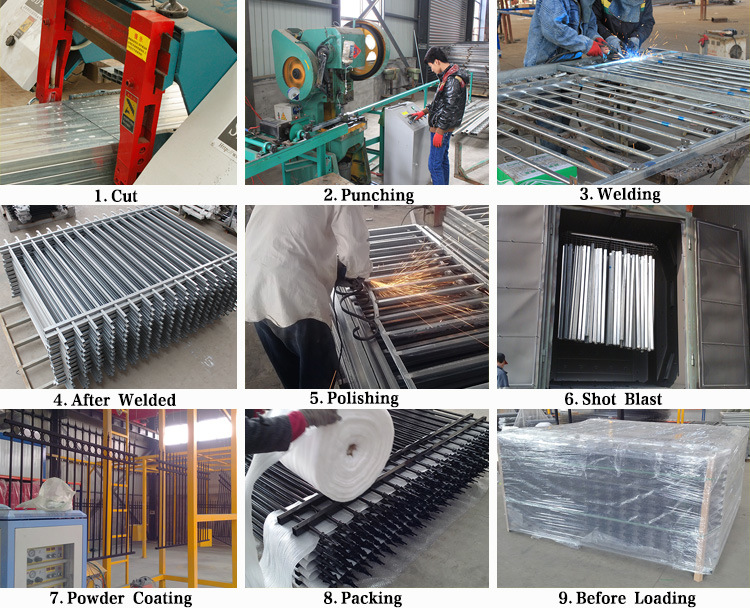

Main manufacture process:

Material: Hot dipped galvanized pipe (Zinc Phosphate is the only internationally recommended metal pre-treatment to ensure long trouble free life on galvanised tube)

a. Pipe punching: The hole is equality.
b. Panel welded: Welded point is strong,but welding spot is small,maked your fence looked beautiful.
c. Polishing: Make sure the edge smooth,cutting parts must be flat polished, there shall not be cut marks.
d. Sandblasting: Make the surface smooth, improve the adhesion of powder.
e. Powder coating: powder coated to exacting standards, by professionals who have invested heavily in "State of the Art" technology.
f. Packing: Each panel packed with air bubble film,then in iron pallet,and the outside have a total air bubble film.Standard export packing,prevent damaged and damp.


Low Carbon Steel Pipe Security Garrison Fence Panels Spear Top Steel Fence
Low Carbon Steel Pipe Security Garrison Fence Panels Spear Top Steel Fence



Low Carbon Steel Pipe Security Garrison Fence Panels Spear Top Steel Fence
