temporary fencing HORBART 38MM fence panels mesh opening 75mmx75mm x 3.00mm/4.00mm diameter HDG 42 microns thick

Brand Name : TOPFENCE®

Model Number : 1800MM X 2400MM ,2100MM X2400MM ,2100MM X 3300MM AND 3500MM

Certification : AS4687-2007

Place of Origin : China

MOQ : 20gp container 250 set included 1pcs panels ,1pcs temporary fence hdpe foot ,1pcs temp fence clamp

Price : 12.88USD-38.88USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000 pcs per week

Delivery Time : 14 work days

Packaging Details : Metal Pallet Wrapped with Plastic

Materials : Q235 Steel

Mesh Opening : 60mm x 150mm x 4.0mm

Pipes : OD 32 pipes

Size : 2100mm x 2400mm

Design By : Australia

Treatment : 14 microns ,42 microns ,84 microns zinc layer

Weight : 22.00kg

type : hot dipped galvanized

Contact Now

temporary fencing HORBART 38MM fence panels mesh opening 75mmx75mm x 3.00mm/4.00mm diameter HDG 42 microns thick

TOP FENCE is a china leading temporary fencing manufactuers we offer full range of solutions for promited construction security ,Temporary fencing was consist fencing panels ,base as clips and brace gates to build a complete construction security fence system .Our standard temporary fencing was welding 32mm tubing to make a frame and flexiable zinc thickness available 14 microns ,28 microns ,42 microns as well 84 microns thickness which lead to temporary fencing panels in difference level of rate to meet any budget of clients .Mild steel Q235 was improved by Australia and NZ are one of best steel for welding temp fence frame as well infill mesh to be a better quality all TOPFENCE supplied fence panels was take Q235 priority always .

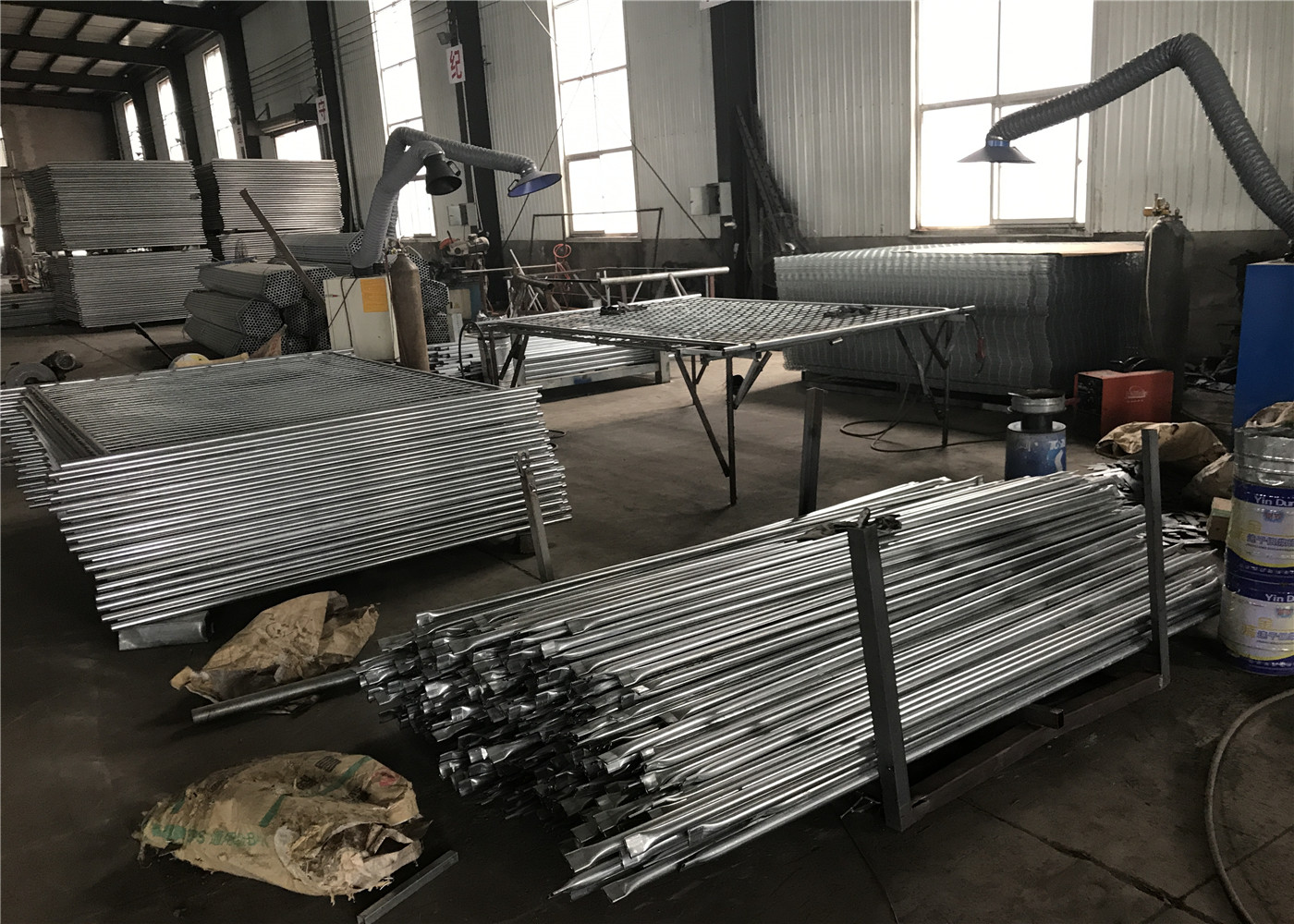

Temporary fencing panels was welding all four end of pipes in a 360 circle to make sure globality of panels can stand stabilities looks heavnies then hand welding all wire or as per required welding spot welding of every 2 or 3 vertical wire to the horizontal pipes after panels was done workers will polish the end of pipes to clear all little burrs then spray primer for corrosion resistant would be strictly perform in

AS/NZS 3750.15 also the temporary fence standard comply with AS4687-2007

42 microns zinc thikcnes HDG temporary fence is developed solutions for

Residential and commercial building
harsh environments, remote and extreme climates
construction, events, civil, demolition, mining, government
Temp fence hire companies and sale companies

42 microns temporary fence technical data sheet
Dimensions	2100mm(H)*2400mm(W)
Tubing	OD 32mm*2.00mm thick
Mesh Spacing	60mm*150mm
Infill mesh size	1736mm*2336mm
V wire number	36 sticks wire 4.00mm
H wire number	17 sticks wire 4.00mm
Finished	14 microns /100 gram/SQM
Weight of panels	20.5kg-22.0kg
Service life	Salt spray 3 years
40HC container	560 unit if covered clamp and base
Packing	Metal Pallet wrapped with plastic film
Productions Time	All stocked
Ocean time	25 days to 35 days to any port of AU & NZ
What papers you provided after shipping containers
Main :Packing list , Commercial Invoice , bill of lading copy or draft for telex release one,balance papers Plus For NZ :Containers Declaration For AU:PKD - Packing Declaration 2016 and Certificated of Original
